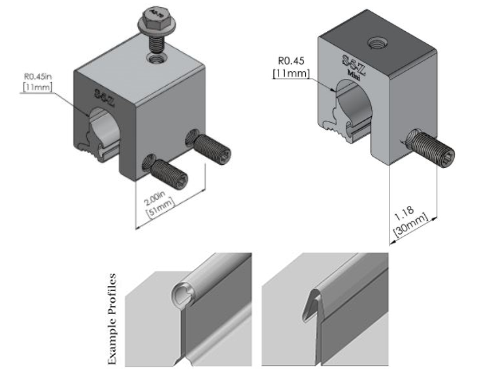

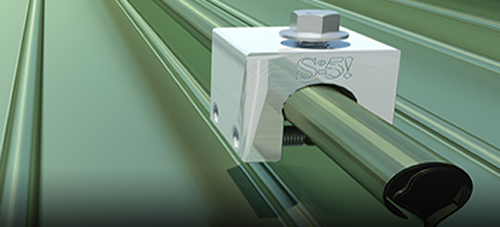

The S-5-Z clamp is specially developed to fit profiles having a round “bulb” seam configuration.  Its two-piece design allows it to be easily installed anywhere along the length of the rib.

The S-5-Z is perfect for S-5!® snow retention products and other heavy-duty applications.

The S-5-Z and S-5-Z Mini clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screw gun.  A structural aluminium attachment clamp, the S-5-Z is compatible with most common metal roofing materials excluding copper.  All included hardware is stainless steel.

Please see downloads below for more information including brochures and installation guides.
