The powerful all-rounder
- Gets the work done quickly due to fast drilling rate and high chiselling performance because of 790-watt powerful motor and 2.7 joules of impact energy
- Reliable and robust with long lifetime due to high-quality components and intelligent construction
- Wide range of applications with rotation stop for chiselling work
- Ball grommet for preventing cable breaks
- Rotating brush plate for equal power in forward and reverse rotation
- Overload clutch to protect the user and the machine
- Forward/reverse rotation for dislodging jammed drill bits
- Continuously variable speed control for clean drilling starts

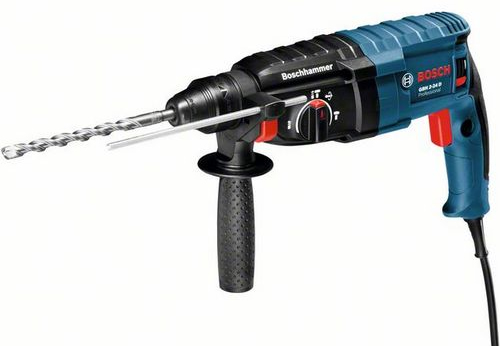

Technical data: GBH 2-24 D Professional
|
Rated power input
|
790 W
|
|
Max. impact energy
|
2,7 J
|
|
Impact rate at rated speed
|
0 – 4.100 bpm
|
|
Rated speed
|
0 – 920 rpm
|
|
Weight
|
2,8 kg
|
|
Toolholder
|
SDS-plus
|
|
Drilling range
|
|
|
Drilling diameter in concrete with hammer drill bits
|
4 – 24 mm
|
|
Optimum range of applications in concrete with hammer drill bits
|
6 – 14 mm
|
|
Drilling diameter in concrete with core cutters
|
68 mm
|
|
Max. drilling diameter in masonry with core cutters
|
68 mm
|
|
Max. drilling diameter in steel
|
13 mm
|
|
Max. drilling diameter in wood
|
30 mm
|
Functions
- Forward/reverse operation
- Electronic
- Overload clutch
Noise/vibration information
Measured values determined according to EN 60745.
Total vibration values (vector sum of three directions)
|
Chiselling
|
|
|
Vibration emission value ah
|
13.0m/s²
|
|
Uncertainty K
|
1.5m/s²
|
|
Hammer drilling in concrete
|
|
|
Vibration emission value ah
|
17.0m/s²
|
|
Uncertainty K
|
1.5m/s²
|
