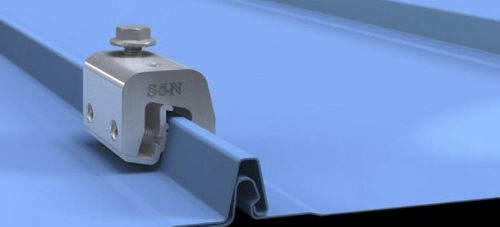

S-5-N and S-5-N Mini clamps were designed with patented S-5!® zero-penetration technology for application on 1" nail strip metal roof profiles and roofing types with similar profiles. The clamp boasts a wider throat that accommodates most nail strip profiles, minimizing the need to field crimp. An angled wall with a nose permits the S-5-N to engage the triangle type profiles during the installation process—there is no longer a need to hold the clamp in place while setscrews are tensioned. The combination of these two features allows the clamp to sit straighter on the seam. Nail strip profiles just got a whole lot simpler!
The S-5-N clamp has been tested for load-to-failure results on most major brands of 1" nail strip profiles of standing seam roofing. The independent lab test data can be used for load-critical designs and applications. S-5! holding strength is unmatched in the industry.

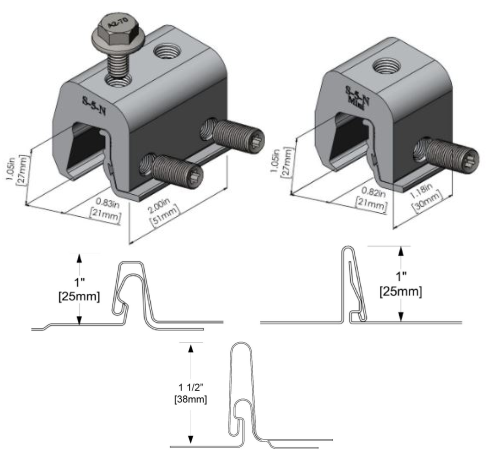

The S-5-N and S-5-N Mini clamps are each furnished with the hardware shown below. Each box also includes a bit tip for tightening setscrews using an electric screw gun. A structural aluminium attachment clamp, the S-5-N is compatible with most common metal roofing materials excluding copper. All included hardware is 300 series stainless steel.
Please see downloads below for more information including brochures and installation guides.
