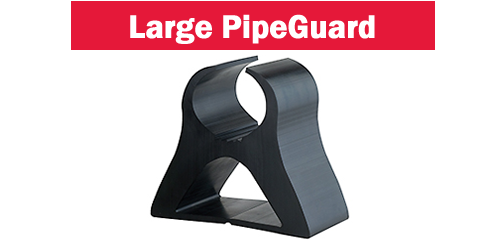

Large PipeGuard

The OlyFlow Large PipeGuard is designed to support rooftop steel pipe, electric conduit, and copper tubing ranging in diameter from 51mm to 127mm at a height of 89mm off the roof surface.  It is made from weather-resistant EPDM, which prevents damage to the roof system, while allowing for expansion. The unique, one-piece, triangular design is engineered to shed water while its wide platform base provides stability and balance.

Features & Benefits

- Integral clamp requires no additional parts or tools.

- Extremely fast installation compared to other methods; it usually takes less than 10 seconds.

- Is designed specifically for common rooftop pipes and is easy for any crew member to install.

- Maximum load capacity per support - 426 kilos.

Application

The one-piece OlyFlow Large PipeGuard makes the application fast and simple and requires no tools or additional parts for use. Simply apply pressure to open the top, place over pipe, and rotate into place.

Downloads
 TitleSize
MSDS35.05 KBDownload
Leaflet328.87 KBDownload
