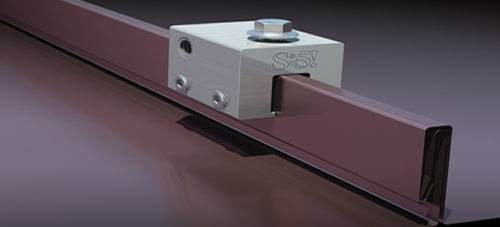

The S-5-U clamp is an extremely versatile clamp. It can be used on vertically oriented seams and by rotating the clamp 90 degrees it can also be used on most horizontal 2” seam profiles. Its simple design, generous dimensioning and multiple hole orientations are what make it so versatile for use with S-5!® snow retention products and other heavy-duty applications.
For horizontal seams under 16.5mm do not use this clamp.

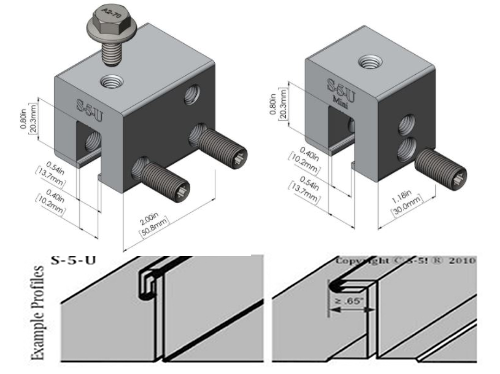

The S-5-U and S-5-U Mini clamps are each furnished with the hardware shown below. Each box also includes a bit tip for tightening setscrews using an electric screw gun. A structural aluminium attachment clamp, the S-5-U is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.
Please see downloads below for more information including brochures and installation guides.
