TrapBracket

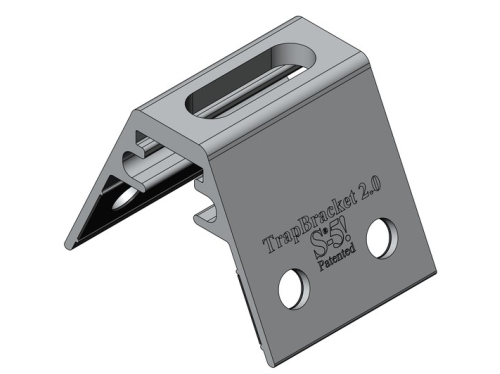

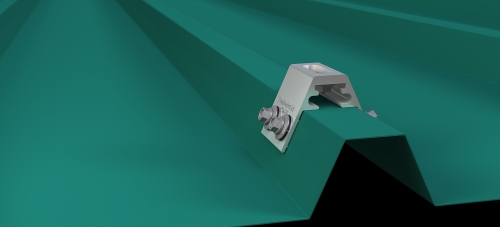

TrapBracket™ can be used to mount virtually anything to an exposed-fastened trapezoidal composite panel roof system without having to fix into the supporting steel structure or penetrating the internal liner sheet. No messy sealants to apply! No chance for leaks! No Cold Bridging! The TrapBracket™ comes with a factory-applied seal already on the base for a water-tight attachment.

TrapBracket™ is so strong it will even support heavy-duty applications like snow retention. For exposed-fastened, trapezoidal profiles, the TrapBracket™ is the perfect match for our ColorGard® snow retention system. TrapBracket™ is extremely economical and facilitates quick and easy installation. Some of the other many applications include:

·          Solar PV Module – Rail or Direct attach when used in conjunction with our PV Kit
·          HVAC / Rooftop Equipment
·          Walkways
·          Pipes / Conducts
·          Signs / Banners
·          Satellite Dishes and Antennas

The TrapBracket™ offers various mounting face configurations with minimum purchase requirements.

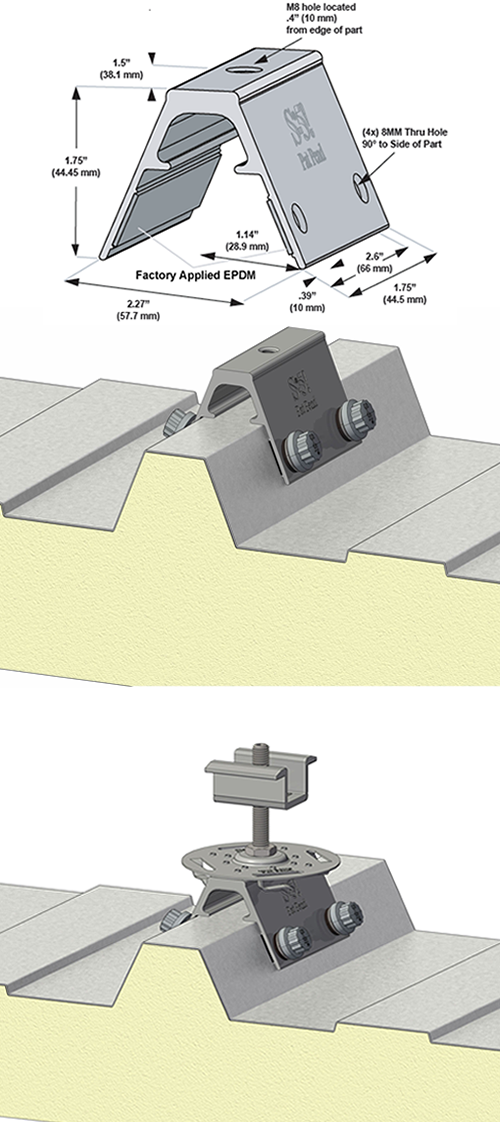

Each TrapBracket™ comes with factory-applied EPDM sealant in the base. A structural aluminium attachment bracket, TrapBracket™ is compatible with most common metal roofing materials.

Please see downloads below for more information including brochures and installation guides.
