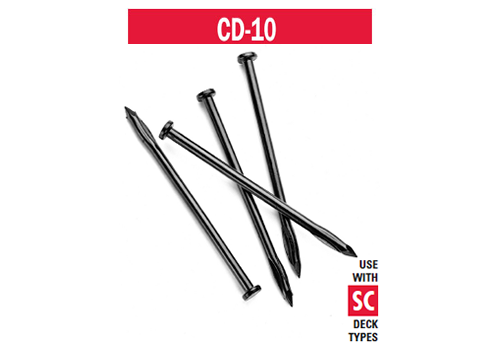

CD-10 Concrete Fastener

The OMG CD-10 is a hammer-in, non-threaded fastener designed to secure insulation and single-ply membrane to structural concrete. This fastener is available in 50mm - 300mm lengths. The CD-10 is Factory Mutual approved.

Features & Benefits

  • Diamond point allows easier installation and less chance of hole damage.
  • Split bulb exerts pressure on walls of hole, producing remarkable holding power.
  • Strongest hammer-in fastener available.
  • Typical pullout values in cured concrete (3000 psi) are over 800 lbs. A pullout test is recommended.
  • The OMG CD-10 is Factory Mutual and Dade County approved.

Application

Predrill a 5.5mm hole using a carbide drill bit. The fastener is then installed with a 2 lb. short handle sledge hammer. Minimum fastener embedment into the deck should be 25mm. The predrilled hole must be a minimum of 12.5mm deeper than fastener embedment.

Note: Prior to job start, contact MAK to perform a pullout test to determine the pullout values.  Also, care must be taken not to overdrive the fastener causing subsequent damage to the insulation facer.

Coating

OMG CR-10 corrosion resistant coating exhibits less than 15% red rust after 30 Kesternich cycles. CR-10 coating exceeds F.M. Approval Standard 4470.

Plates & Accessories

Appropriate steel or plastic plates, depending on application. See Plates section. Use a 5.5mm carbide tip SDS or straight shank drill bit.

Downloads
 TitleSize
MSDS35.05 KBDownload
Leaflet233.87 KBDownload
ETA Approval3.21 MBDownload
