AccuTrac Tool

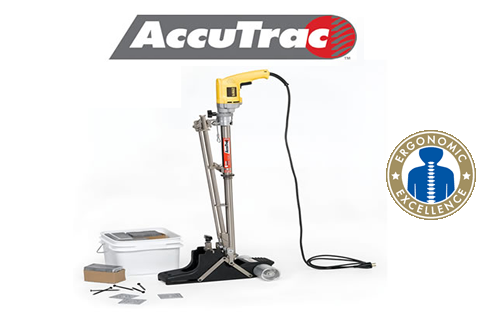

The OMG AccuTrac is an automated insulation attachment system providing the lowest installed cost for mechanical insulation attachment.  In one step, the insulation plate is placed in position by the AccuTrac tool as the labourer drives the fastener, eliminating the need for one labourer (where normally two would be required), thereby increasing productivity 50%.  This simple and easy-to-operate tool minimizes operator fatigue as it eliminates the constant bending-over method of fastening.

For use with OMG manufactured #12 standard fasteners (Phillips and Hex), the #14 heavy duty fasteners, #15 fasteners, and AccuTrac plates.  Attempting to use anything else will damage the tool.

Features & Benefits

The depth adjustment ring eliminates overdriving and under-driving of fasteners while providing consistent vertical alignment, ensuring maximum thread engagement and pullout performance.  For versatility, the AccuTrac tool handles two types of plates: a flat bottom plate for hard-boards and counter sunk plates for normal applications, while the universal drive shaft accepts Hex and Phillips driver bits.  The anti-jam feeder tube reduces jamming cause by double-feeding fasteners.  Chances of downtime are greatly reduced.

Application

For use with OMG manufactured #12 standard fasteners, #14 heavy duty fasteners, #15 fasteners, and AccuTrac plates for insulation attachment to steel and wood decks.  For all OMG fasteners, use lengths up to 150mm.

Downloads
 TitleSize
User Manual948.61 KBDownload
Leaflet521.34 KBDownload
Best Practices170.79 KBDownload
