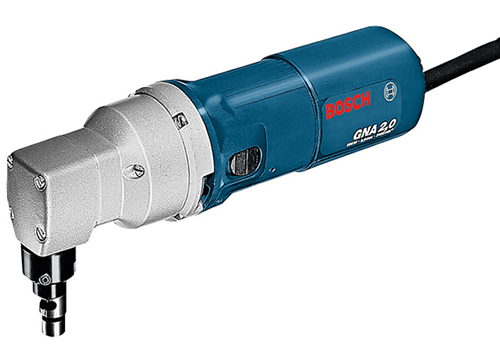

GNA 2.0 Professional
  • Lockable die plate for straight cuts
  • Working to scribe mark and template easily possible
  • For interior cut-outs
Technical data

Material that can be processed Steel up to 400 N/mm² at 2.0 mm
Cutting track width 6 mm
Pre-drilling for interior cutout 16 mm
Smallest radius 3 mm
Stroke rate, load 1.500 spm
Stroke rate at no load 2.400 spm
Weight 2,0 kg
Length 275 mm
Height 127 mm
Cutting capacity in steel (400 N/mm²), max. 2,0 mm
Cutting capacity in steel (600 N/mm²), max. 1,4 mm
Cutting capacity in steel (800 N/mm²), max. 1,0 mm
Cutting capacity in aluminium (200 N/mm²), max. 2,5 mm
Electric specifications
Rated power input 500 W
Power output 270 W

Downloads
 TitleSize
Operating Instructions7.00 MBDownload
